19X58 Affordable House Design

2,200.00

2 Bedrooms| Drawing/Dinning Room  | Kitchen | Parking
1100 sq. ft. area
South Facing

SKU: TX240 Category:

This is a modern affordable house design which has a Build up area of  1100 sq. ft.
and South Facing House design.

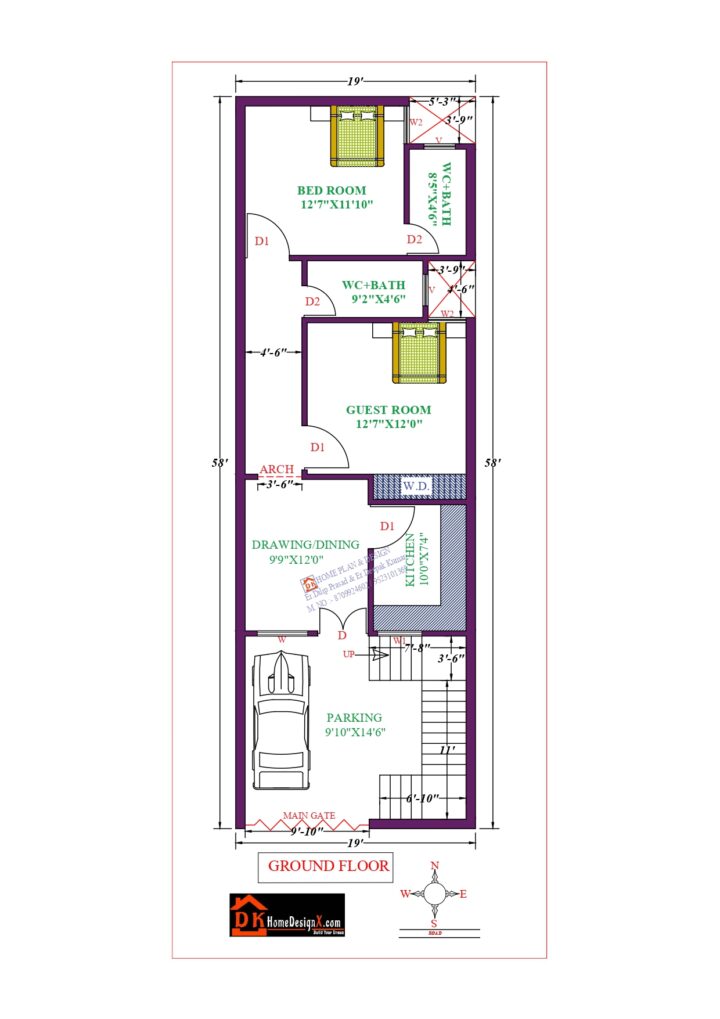

Ground Floor


2 Bedrooms  | Drawing/Dinning Room  | Kitchen |Parking


What will you get in this package?

  • 2D Floor Plan
  • Column Layout with Foundation Details
  • Tie/Plinth Beam Layout & Reinforcement Details
  • Lintel Beam Layout
  • Roof Beam Layout & Reinforcement Details
  • Slab Design
  • 2D Front Elevation for Site Working
  • Section for stair details
  • Complete structure with complete reinforcement details
  • Door-Window Schedule
  • Septic tank details
  • Specification Notes
