25X50 Modern Building Design

This is a Modern Building Design  which has a Build up area of  1250 sq. ft.
and North Facing House design.

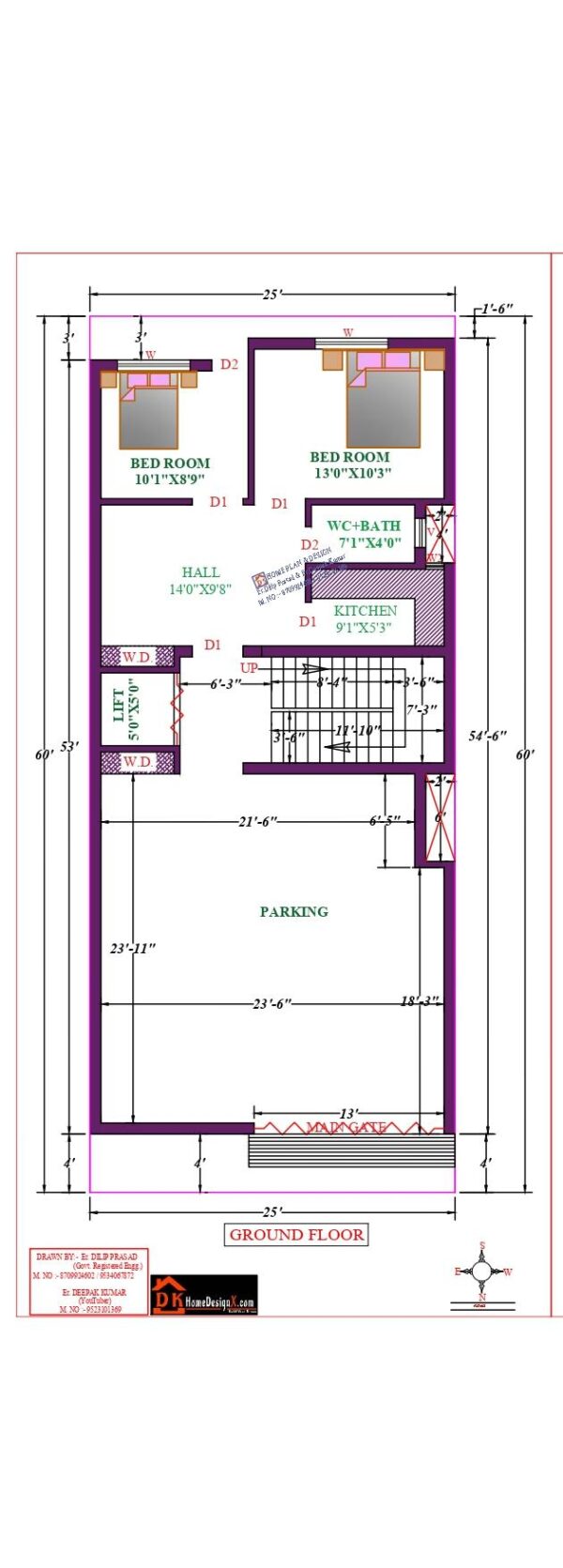

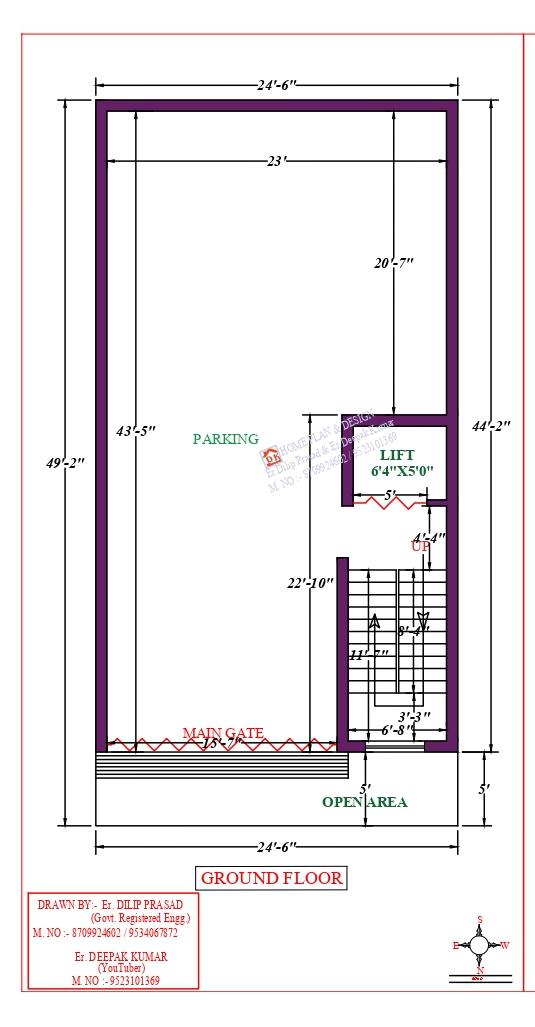

Ground Floor

---

Parking Area

---

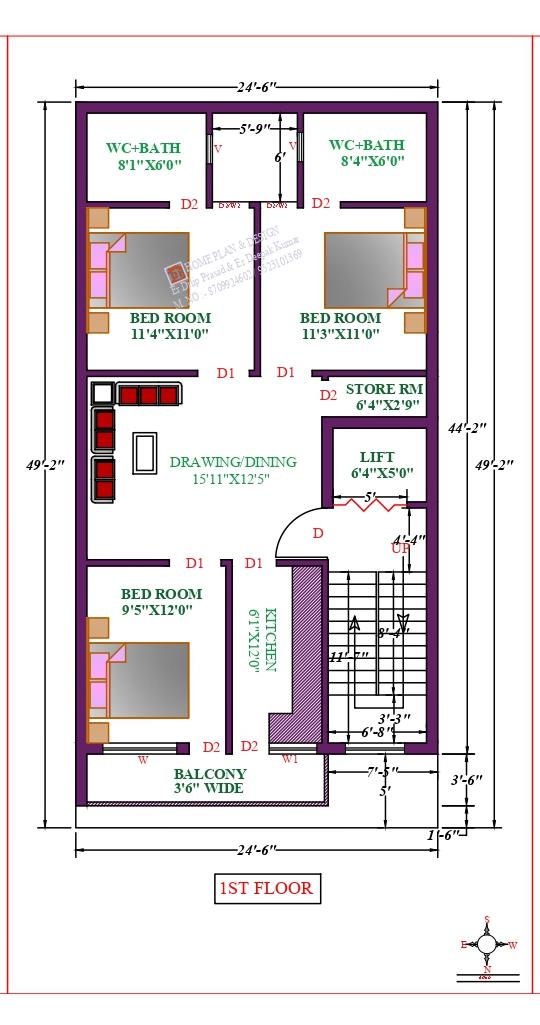

First Floor

---

3 Bedrooms | Drawing / Dinning Area | Kitchen

---

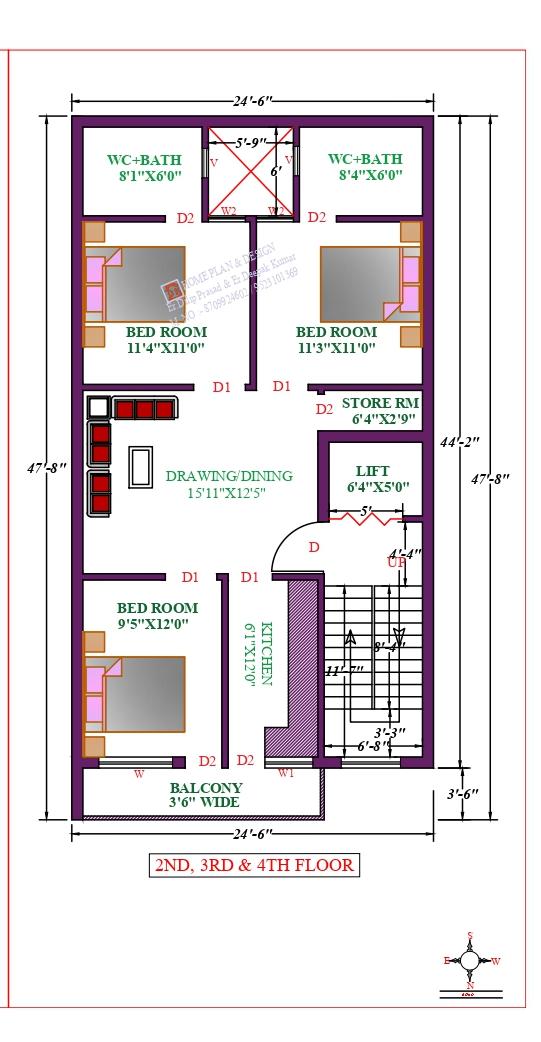

Second Floor

---

3 Bedrooms | Drawing / Dinning Area | Kitchen

---

Third Floor

---

3 Bedrooms | Drawing / Dinning Area | Kitchen

---

Fourth Floor

---

3 Bedrooms | Drawing / Dinning Area | Kitchen

---

What will you get in this package?

• 2D Floor Plan
• Column Layout with Foundation Details
• Tie/Plinth Beam Layout & Reinforcement Details
• Lintel Beam Layout
• Roof Beam Layout & Reinforcement Details
• Slab Design
• 2D Front Elevation for Site Working
• Section for stair details
• Complete structure with complete reinforcement details
• Door-Window Schedule
• Septic tank details
• Specification Notes
