32X52 Affordable House Design

6,700.00

4 Bedrooms  | Drawing /Dining Room | Kitchen | Parking
1665 sq. ft. area
East Facing

SKU: TX390 Category:

This is a modern affordable house design which has a Build up area of  1665 sq. ft.
and East Facing House design.

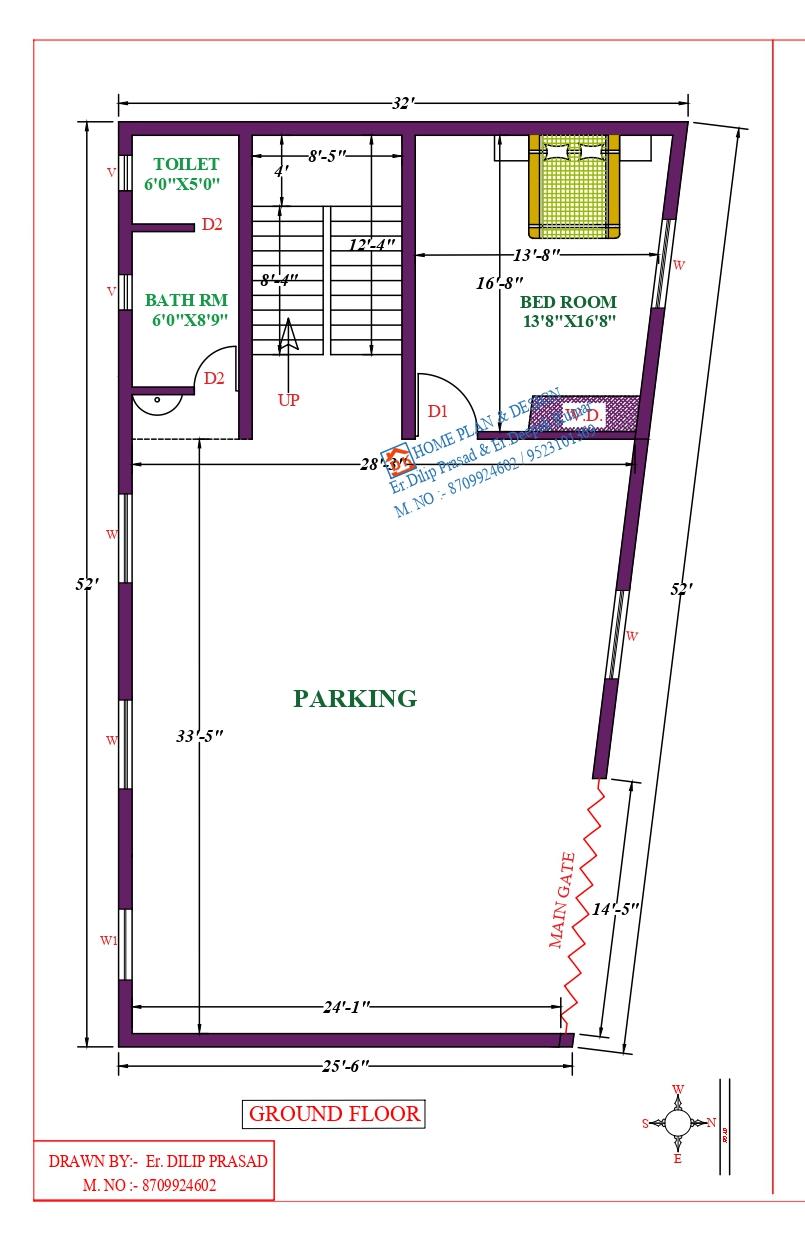

Ground Floor


1 Bedroom | Parking

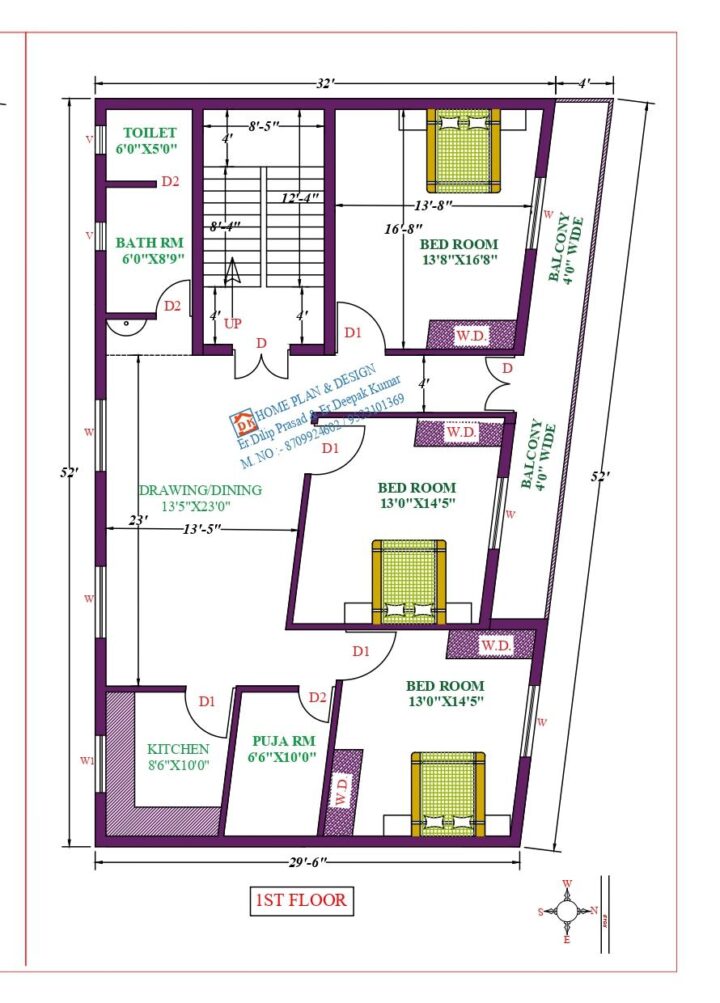

First Floor


3 Bedrooms  | Drawing /Dining Room | Kitchen


What will you get in this package?

  • 2D Floor Plan
  • Column Layout with Foundation Details
  • Tie/Plinth Beam Layout & Reinforcement Details
  • Lintel Beam Layout
  • Roof Beam Layout & Reinforcement Details
  • Slab Design
  • 2D Front Elevation for Site Working
  • Section for stair details
  • Complete structure with complete reinforcement details
  • Door-Window Schedule
  • Septic tank details
  • Specification Notes
