33X43 Affordable House Design

This is a modern affordable house design which has a Build up area of  1420 sq. ft.
and North Facing House design.

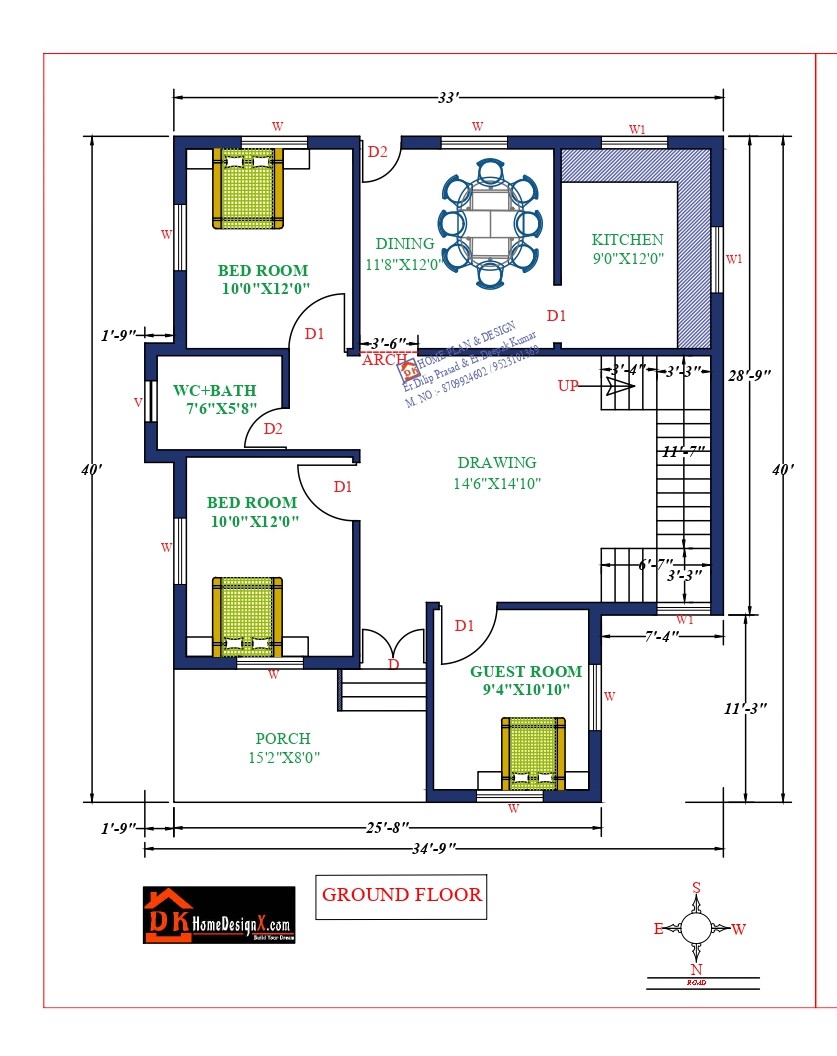

Ground Floor

3 Bedrooms  | Drawing/Dinning Room | Kitchen

First Floor

4 Bedrooms  | Drawing Room

What will you get in this package?

• 2D Floor Plan
• Column Layout with Foundation Details
• Tie/Plinth Beam Layout & Reinforcement Details
• Lintel Beam Layout
• Roof Beam Layout & Reinforcement Details
• Slab Design
• 2D Front Elevation for Site Working
• Section for stair details
• Complete structure with complete reinforcement details
• Door-Window Schedule
• Septic tank details
• Specification Notes
