39X37 Affordable House Design

5,700.00

7 Bedrooms | Drawing/Living Room | Dinning Area |  Kitchen
1440 sq. ft. area
West Facing

SKU: TX140 Category:

This is a modern affordable house design which has a Build up area of  1440 sq. ft.
and West Facing House design.

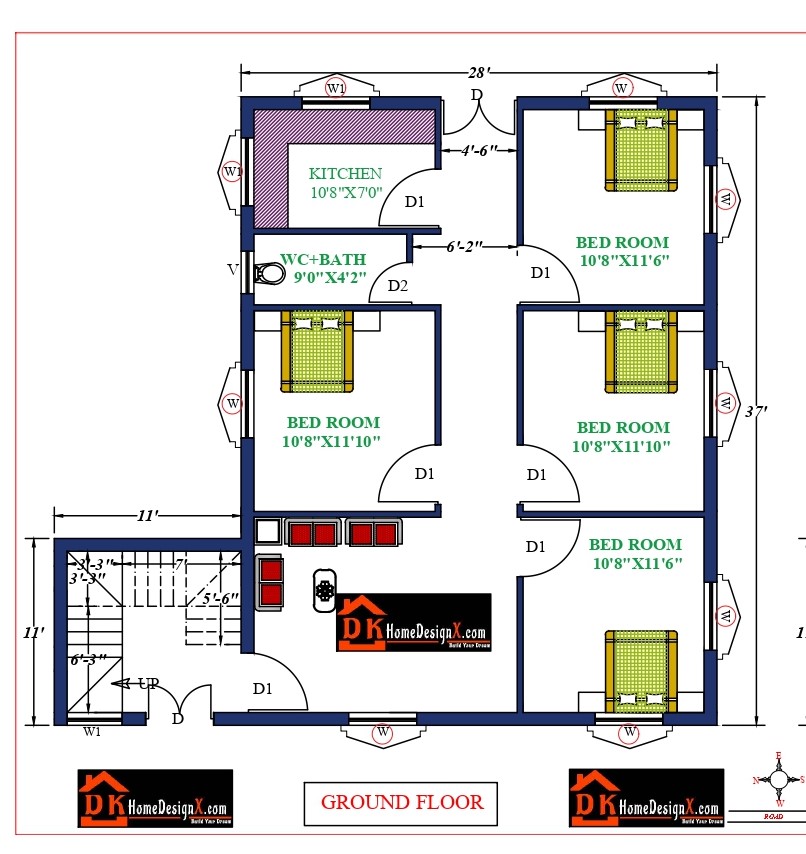

Ground Floor


4 Bedrooms | Drawing/Living Room| Dinning Area |  Kitchen

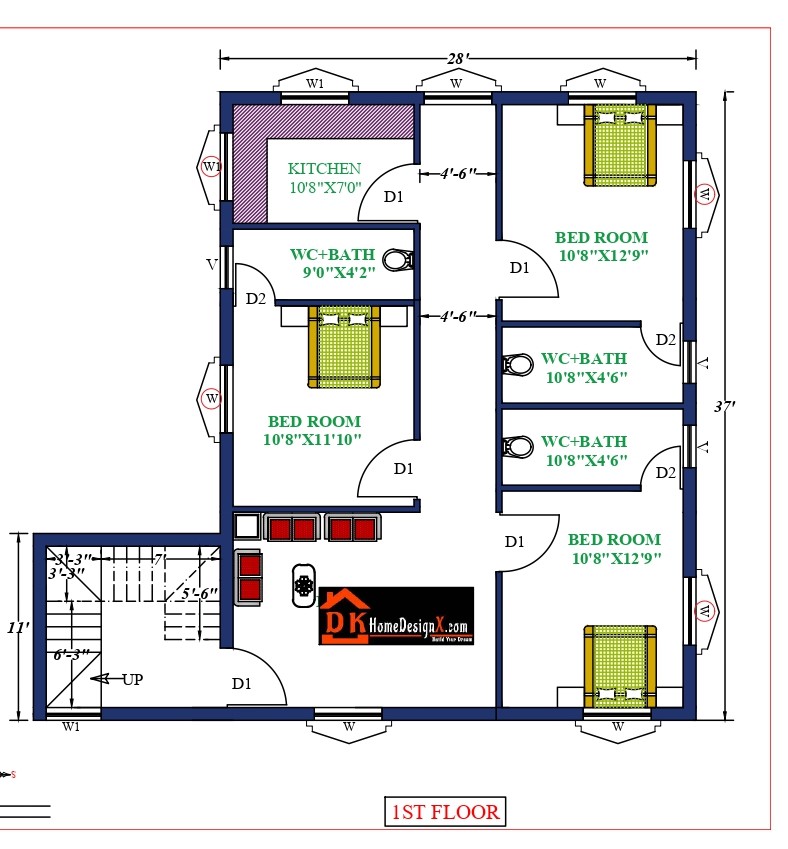

First Floor


3 Bedrooms | Drawing/Living Room| Dinning Area |  Kitchen


What will you get in this package?

  • 2D Floor Plan
  • Column Layout & Foundation Details
  • Tie Beam Layout & Reinforcement Details
  • Roof Beam Layout & Reinforcement Details
  • 2D Front View for Site Working
  • Section View
  • Stair, Slab Design and Reinforcement Details
